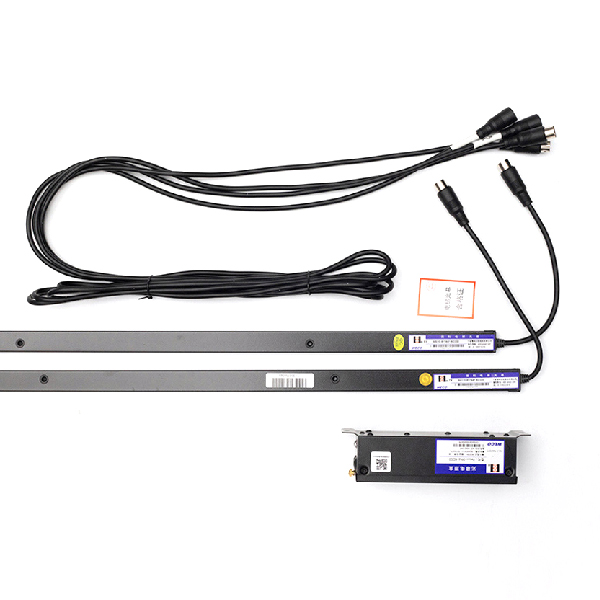

WECO elevator door sensor 917A61 AC220 94 beam parts free shipping universal elevator light curtain
917A61-DC24R and 917A61-DC24R-S2 do not come with a power box and are directly plugged into the door machine board. It is divided into A operation and B operation, which are distinguished by the color of the line. Please consult customer service for details. 917MA61-DC24R is a new model and 917A61-DC24R is an old model and can be used universally.
Product Details
Related Post
Product Display
Specifications
| WECO 917A61 technical parameters | |
| Number of beams(Max.) | 94 |
| Operating environment | -20℃—+65℃ |
| Light Immunity | ≤100000Lux |
| Vertical tolerance | +1-10mm,7° |
| Horizontal tolerance | +/-3mm,5° |
| Dimensions | H2000mm*W24mm*D11mm |
| Detecting height | 20mm-1841mm |
| Detecting range | 0-3m |
| Response time | 36.5ms |
| Power consumption | ≤4W or 100Ma @DC24V |
| Signal output | Relay output(AC220V,AC110V,DC24V) or Transistor output(NPN,PNP) |
| LED power Indicator in receiver | Green LED when it is detecting |
| LED status Indicator in receiver | Red LED when it is detecting |
| Number of diodes | 17pairs(34pcs) |
| Infra red diodes range | 117.5mm |
| Voice reminder | Buzzer In RX,after continuous detection for 15s,buzzer On |
| EMC | EN12015,EN12016 |
| Vibration | 20 to 500Hz 4 hours per x-Y-Z axis Sinuaoidal vibration 30Hzrms 30mins Per x-Y-Z axis |
| Protection Level | IP54(TX,RX),IP31(Power box) |
| Certificate | CE |
| Quality Warranty | 12months after shipping |
This light curtain can be directly installed and used on most brand elevators. If you encounter problems such as installation technical modifications, please contact us.
If you want to increase the function of the original elevator light curtain, you can also use this light curtain directly. Experience in the modification of light curtains suggests not to modify the light curtain casually!
